Compact Footprint Eaton 93E UPS 300kVA 270kW 3:3 Phase Industrial Online UPS

Name: Compact Footprint Eaton 93E UPS 300kVA 270kW 33 Phase Industrial Online UPS
Brand: Eaton
Price: 1 USD

Brand Name : Eaton

Model Number : Eaton 93E UPS

Certification : CE

Place of Origin : China

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000pcs/months

Delivery Time : 60days

Packaging Details : cartons

Product name : Eaton 93E UPS

Power level : 100KVA-500KVA

Rated voltage : 380Vac/220Vac

Product type : Tower UPS

Frequency : 50/60Hz

Audible noise : 55-73dB

Crest factor : 3:1

ESS mode : 98%

Operating temperature : 0~40ºC

Storage temperature : -25~55ºC

Input Voltage : 380Vac/220Vac

Output Voltage : 380Vac/220Vac

Bypass voltage : 380Vac

Battery types : VRLA, AGM, GEL batteries, or Eaton lithium batteries.

Charging time : 8 hours to reach 90% of full capacity

Connection : RS-232, Mini-Slot communication slot

Altitude : Less than 1000 meters, no derating

EMC standard : IEC/EN 62040-2

Quality Standard : ISO 9001:2015, ISO 14001:2004

Certifications : TLC,CQC

Contact Now

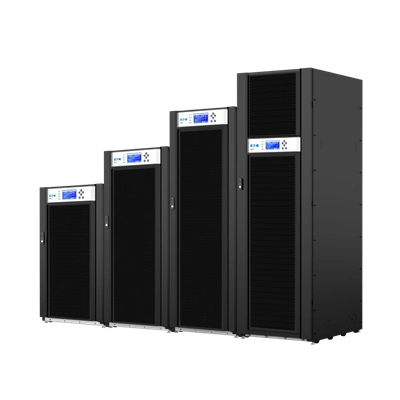

Eaton 93E UPS 300kVA/270kW 3:3 Phase Industrial Online UPS

Eaton 93E UPS

The Eaton 93E UPS delivers superior power protection for ever-expanding loads in today’s space-constrained data centres. Facilitating a lower total cost of ownership (TCO) through a combination of energy-efficiency, high reliability and a compact footprint the 93E is an ideal solution for small to medium - sized data centres and other applications desiring highly reliable power protection.

The 93E UPS is Eaton's new-generation energy-saving uninterruptible power supply designed to provide a higher level of power protection. This UPS provides reliable power protection solution of a broader power range from 15 kVA to 500 kVA to critical equipment such as IT infrastructure in data centers from small to large, industrial control application systems and laboratory precision instrumentation.

Core features

Provides rectification and inversion efficiency up to 96% and energy saver mode efficiency up to 99% by using advanced DSP control technology
As a scalable UPS, utilizes Eaton's patented wireless Hot Sync paralleling technology
Reduces power consumption with energy saver mode
Extends battery life by using ABM™ intelligent battery management
Supports a wide range of optional accessories such as battery cabinets, upper air outlets, parallel management cabinets, upper inlet cabinets and synchronization controllers for better system flexibility and configurability

Eaton 93E UPS 15-500 kVA Technical Specs

Power
Ratings	100kVA/90kW, 120kVA/108kW, 160kVA/144kW, 200kVA/180kW, 300kVA/270kW, 400kVA/360kW, 500kVA/450kW
Topology	Double-conversion online UPS
Electrical Input
Nominal input voltage	400/230V, 4 wire (380/415V selectable)
Input voltage range	-15%, +20% from nominal (400V) at 100% load without depleting battery
Operating frequency	50/60 Hz (40 to 72 Hz)
Input power factor	>0.99 typical
Input current distortion	≤5% THD
Electrical Output
Nominal output voltage	400/230, 4 wire (380/415V selectable)
Output voltage regulation	±1% Static; ±5% dynamic at 100% resistive load change, <20 ms response time
Battery
Battery	192 to 240 Cells (Continual selectable for 15-80kVA) 216/222/228/234/240 Cells (Selectable for 100-500kVA)
Charging method	ABM Cyclic Charging
General
Efficiency	>98.5% High-efficiency mode (100-300kVA) >99% High-efficiency mode (400-500kVA) >94% Double-conversion mode (15-300kVA) >95% Double-conversion mode (400-500kVA)
UPS bypass	Automatic on overload or UPS failure
Parallel technology	Powerware Hot Sync® Technology
Dimensions W x D x H	600 x 800 x 1876 (mm) 60-200kVA 1600 x 820 x 1880 (mm) 300/500kVA
Cabinet rating	IP20 with standard washable dust filters
Weights without internal battery	80kVA-245kg, 100kVA-283kg, 120kVA-311kg, 160/200kVA-457kg, 300kVA-860kg, 400kVA-970kg, 500kVA-1020kg

Overload	150% for 1 minute, 125% for 10 minutes, >150% for 150ms
Communications
Display	Graphical LCD with blue backlight
LEDs	(4) LEDs for notice and alarm
Audible alarms	Yes
Communication ports	(1) RS-232, (1) USB, (1) EPO
Communication slots	(2) Mini-slot communication bays
Environmental
Operating temperature	0ºC to +40ºC Batteries recommended max. +25ºC
Storage temperature	-25ºC to +55ºC without batteries +15ºC to +25ºC with batteries
Relative humidity	5-95%, non-condensing
Audible noise	100-120kVA ≤65 dBA at 1m typical 160-200kVA ≤70 dBA at 1m typical 300-400kVA ≤73 dBA at 1m typical 500kVA ≤75dBA at 1m typical
Altitude	<1000m at +40°C
Certifications
EMI standards	EN55022/EN55024
EMC compliance	IEC 62040-2
Quality	ISO 9001: 2000 and ISO 14001:1996
Communication Accessories
Network-MS	Web/SNMP Card
Modbus-MS	Web/SNMP and Modbus Card
Relay-MS	Relay (Dry Contact) Card -DB9 Connection
Industrial Relay	Relay (Dry Contact) Card -Terminal Connection
116750224-001	Environmental Monitor Probe (EMP) kit (need to plug into Web/SNMP Card or Web/SNMP and Modbus Card to work)
System Accessories
Battery Cabinets & Battery Circuit Breakers (60-200kVA)
Maintenance Bypass Switches (MBS) (100-200kVA, standard on 15-80kVA)
Top Cable Entry (60-200kVA, standard on 300-500kVA)
System Parallel Modules (60-200kVA)
Dual input kit (15-80kVA)
IP21 hood (15-200kVA)
Rear Chimney (60-200kVA)
